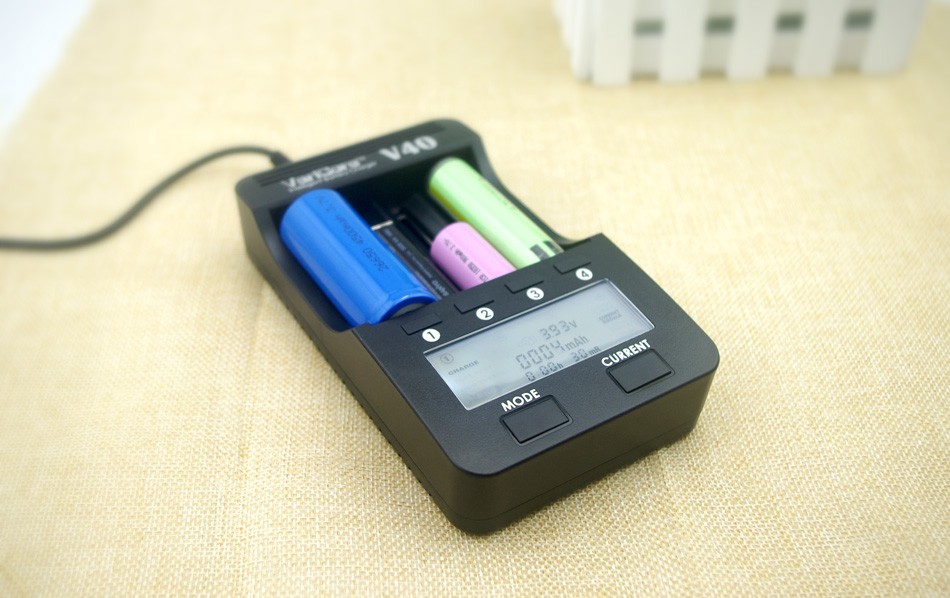

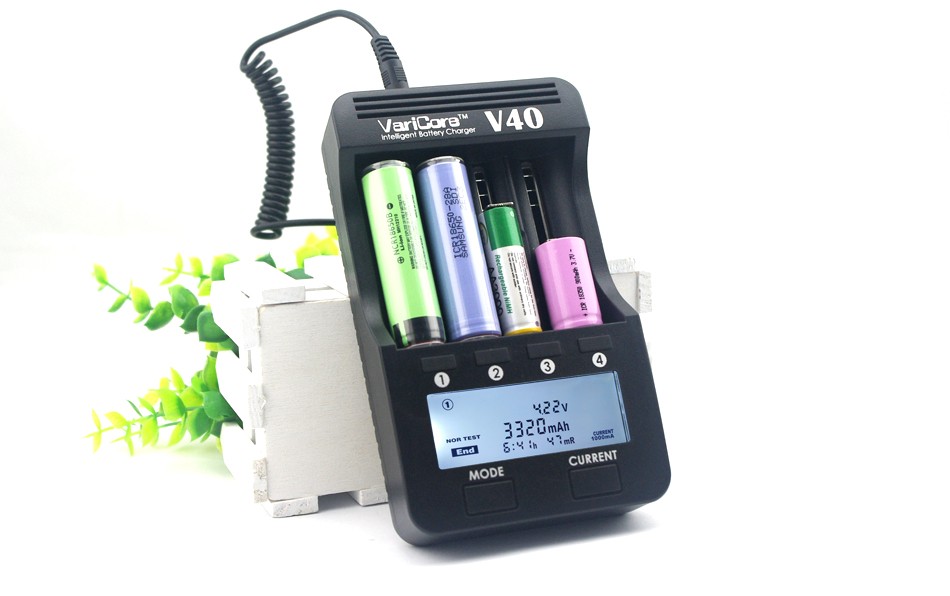

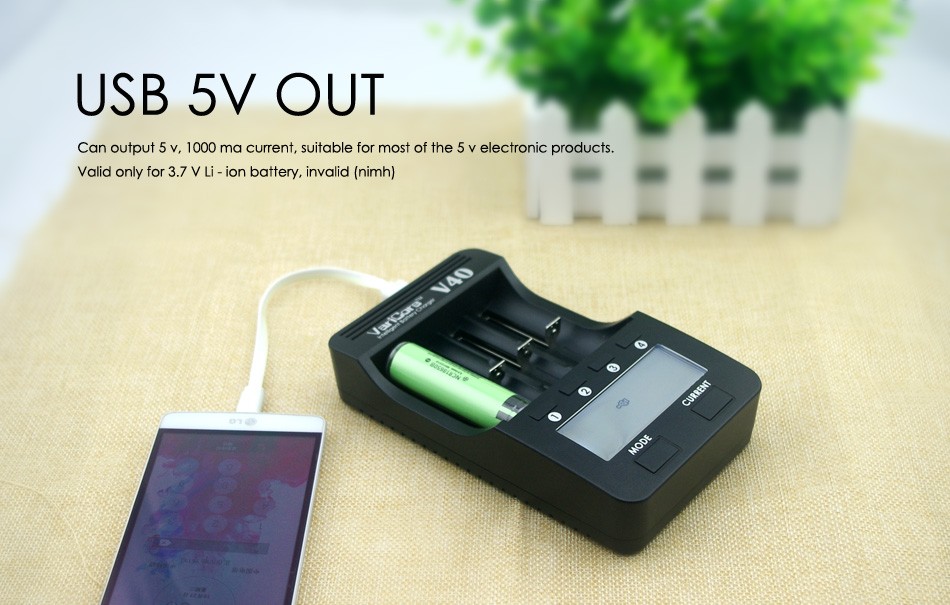

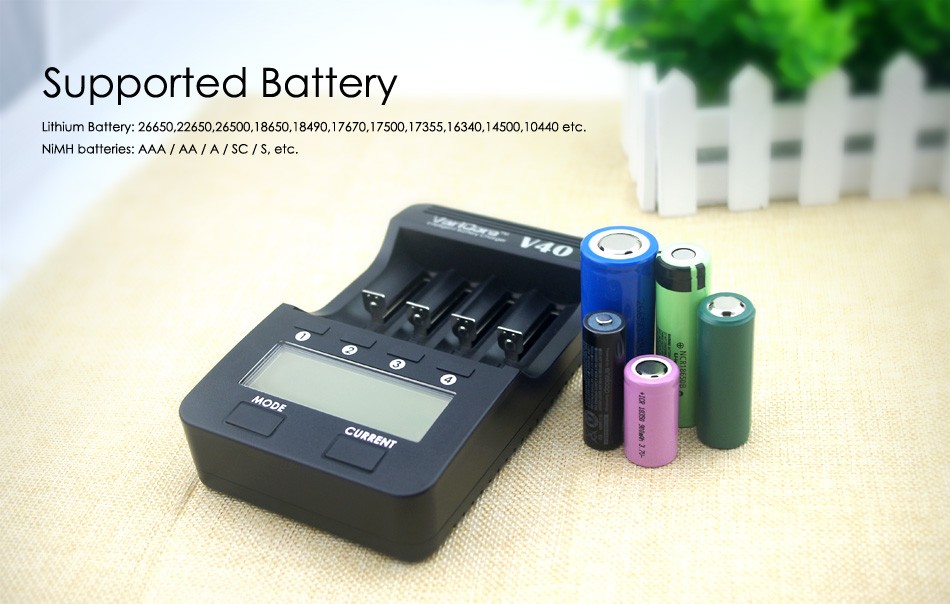

Shipping list: V40 Charger + 12V adapter 2A+ manual + exquisite packaging Varicose instructions V40 Thank you for using the company’s products-V40, This high-end charger with 4-channel independent charge / detection of battery capacity / battery internal resistance / anti-reverse / short circuit protection / overfill protection / temperature / 1.65 V-2.2V voltage can not charge 10 function / USB 5 V output and Zero-Volt battery Activation while timely manner can automatically monitor the battery (Duties of detection) process. V40 can charge a variety of different types of cylindrical lithium ion battery and AA \ AAA and other cylindrical nickel-hydrogen batteries, widely used in lamps, electric tools, instruments, digital cameras and other electronic products, batteries. Safe to use, portable, powerful, your home, travel a good helper Warning 1. This device can only charge a cylindrical lithium-ion batteries and nickel-hydrogen batteries, non-rechargeable lithium iron phosphate battery; 2. Before use, please carefully refer to the instructions Note Recommendations battery charging current does not exceed the recommended charging current; 3. Do not use any other power adapter; 4. Battery discharge unit may be hot, be careful not to burn; 5. Discontinue use, turn off the power, removing the battery; 6. It can be used only in a normal room. 7. This product test data for reference only, please refer to the actual situation, the professional equipment. Secondly, the characteristics of 1.4 kinds of charging current regulator (mA / 500mA / 700mA / 1000mA); 2. Various specifications (18650/26650 …… / AA / AAA) at the same time charging the battery; 3. The charger eliminates the use of an independent panel LCD, Voltage (V) Current (MA) Time (H) Capacity (mAh) Resistance (MR) Options, the E … view; 4. Under the charging mode, 4 channel work independently, you can select different charging current for charging and hunchong lithium-ion batteries and nickel-metal-hydride batteries. 5. Under the Quick Test mode, 4 channels can quickly detect the battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, to work independently. Rapid detection of battery capacity process consists of a step (level) 6. Neither the test mode, the battery capacity is usually found three step process (1 to full capacity, discharge 2, 3 refill) Detection Battery capacity display; (1 Charging indicator 2 full discharge end of flashing, 3-class light when fully charged). 7. Charging and fast test / no test 3 modes can operate simultaneously; Independent set the charge / fast detection capability / Normal detection capacity; 8. Various protection functions: Overload and over discharge, short circuit, temperature, voltage 0 V activate the function, (& Delta; V and 0 & Delta; V), 1.65 V-2.2 Not charging function, identify the bad battery detection and reverse battery protection. 9. With a standard 5 V / 1000 mA USB output function: 1 to 4 lithium battery Lithium batteries USB output is completed, this product can not be nickel-metal hydride battery with USB output. 10. With special power adapter: DC Input Voltage: 12V / 2A. Third, the description of the keys 1. The charger has six buttons, a mode selection button (mode), Current selection key (NAP), choose and view the data key (1234), The use of simple and convenient; 2. Hold down under in any circumstances Mode key and hold for three seconds to change the charge (FREE) mode or quick test No test (capacity test) mode, then press again the corresponding function keys can be changed within 8 seconds, The current Independent, Hunchong, power testing, the selected function after 8 seconds in a working condition, in working condition can press (1234) to view the current (MA) / capacity (mAh) / voltage (V) / time (H) / resistance (MR) data link value. Fourth, Mode Description: (Charging mode) 1. When the charger when the power is turned on, battery charger all instant full brightness LCD screen, if the battery is placed in the Null display, if it is a bad battery will also be displayed in the Null; 2. Insert the battery charger, battery charger for three seconds or so to measure the internal resistance of the battery, and then the system automatically switches to charging mode (free), charger will automatically default charging current “500mA, in 8 seconds, you can select within key (NAP) Select 300mA, 500mA, 700mA, 1000mA charging current, locks the current system you chose in 8 seconds after charging If within 8 seconds, not to make a set, then the system will automatically default charging current 500MA, current and other functions at this time it will not be changed, if you want to change, change the mode Press the button on the elections; 3. In the charging mode (FREE) Within 8 seconds to change any independent charge or any other of the current selection as well as various hunchong battery. Simple, 8 seconds, press the corresponding button batteries 1234, press the mode button to change the mode, press the key to changing the current Independent, Hunchong capacity detection function, chosen after 8 seconds in operation, pay attention to the size of the battery capacity, select the charge current, if not fast charging, we recommend charging 500MA, This is the most secure; 4. Charge mode, pressing the button you can switch to view the 1234 charge capacity (mAh) / charging time (H) / internal resistance of the battery (the MR) / charging current (MA), Voltage (V) 5 types of units, the battery is fully charged after the show (End duties) II. Capacity detection mode (Quick test, no test) two kinds () Quick test (rapid capacity test mode) 1. When the power is turned back into the battery charger, 8 seconds, press (mode selector key) Select (Quick fast detection capability test mode), then press the (current CURREN selection key) Select the system in eight seconds after locking the selection work. Quick Reference Table Capacity testing procedure Rapid detection of battery discharge capacity and the discharge capacity of the recording of data in order to detect the battery capacity. Please note that this product is the power test mode, in unloading mode is divided into two types, When you select the charge current (300mA, 500mA), The system will automatically default to the discharge current of 250mA, When you select the charge current (700mA, 1000mA), system automatically default 500mA current discharge, 3. After entering any test mode, you can select the key (NAP) Select 300mA, 500mA, 700mA for 8 seconds, or 1000 mA, the current system is locked after selecting 8 seconds 2. When the power is turned back to the charger, 8 seconds, press (mode selector key) no test mode is selected, in any mode, press the mode button for 2 seconds, you can enter any test mode; 1. No Test Mode: The first battery is fully charged, then discharge the battery discharge capacities to detect and record the battery capacity after the battery is fully automated; The ability to detect a process with reference Table II (B) No test (Normal capacity detection mode) If in the 8-second period, do not make a set, the system will automatically block 500MA charging current (in this case, is selected by default, the current charging current is automatically When selected discharge 250mA discharge current), in 8 for a few seconds, the Select 700mA or 1000mA charge current will automatically select the current 500MA discharge discharge. 4. When the battery is fully charged, the system will automatically discharge current default system discharge (Select the charge current when the relationship), and writing data to detect the discharge capacity of the battery when the screen flickers, Capacity Test mode is ended Parameter LCD screen the actual capacity of the reference battery values ;. 5. Capacity Test mode is ended, the Charger will be selected before the battery charging current parameters again before the end of the light when fully charged. Five, USB 5 V output 5.1 USB 5 V only move as an output, the output current 1000mA, Connect the USB power output is invalid. When the battery slot in the USB output of about 5.2 / 5 In exchange wake up, This time can be 5 V power supply and electronic products. 4 batteries 5.3 product, Any Slot USB output can recommend two slots are placed in the battery. 5.4 USB 5 V output is only 3.7 V lithium-efficient NiMH Boost invalid. VI. Specific parameters 6.1 DC Input voltage: 12V / 2.0A 6.2 LI-ION battery charging current: 4.2 V 300mA / 500mA / 700mA / 1000mA 6.3 NiMH battery charging current: 1.48 At 300mA / 500mA / 700mA / 1000mA 6.4 Rechargeable Battery Specifications: 18350, 18650.26650, 14500, AA, AAA, and others. 6.5 Discharge Current: 250mA, 500mA 6.6 USB Output: 5V — 1000mA 6.7 Termination: Intelligent voltage monitoring 6.8 Dimensions: 162 mm (length) * 96 mm (width) * 36 mm (height).
